Unbundled Aging

Per-sheet walkthrough — L1 Reconciliation Dashboard.

What the sheet shows

Posted transactions whose bundle_id is still NULL past their rail's max_unbundled_age cap. An AggregatingRail's job is to pick these legs up and group them into a Bundle; an unbundled leg older than the rail's cadence means the bundler hasn't fired or isn't matching.

Per validator R8, max_unbundled_age ONLY matters on rails that appear in some AggregatingRail's bundles_activity. A rail without the field emits a NULL cap and drops out by construction.

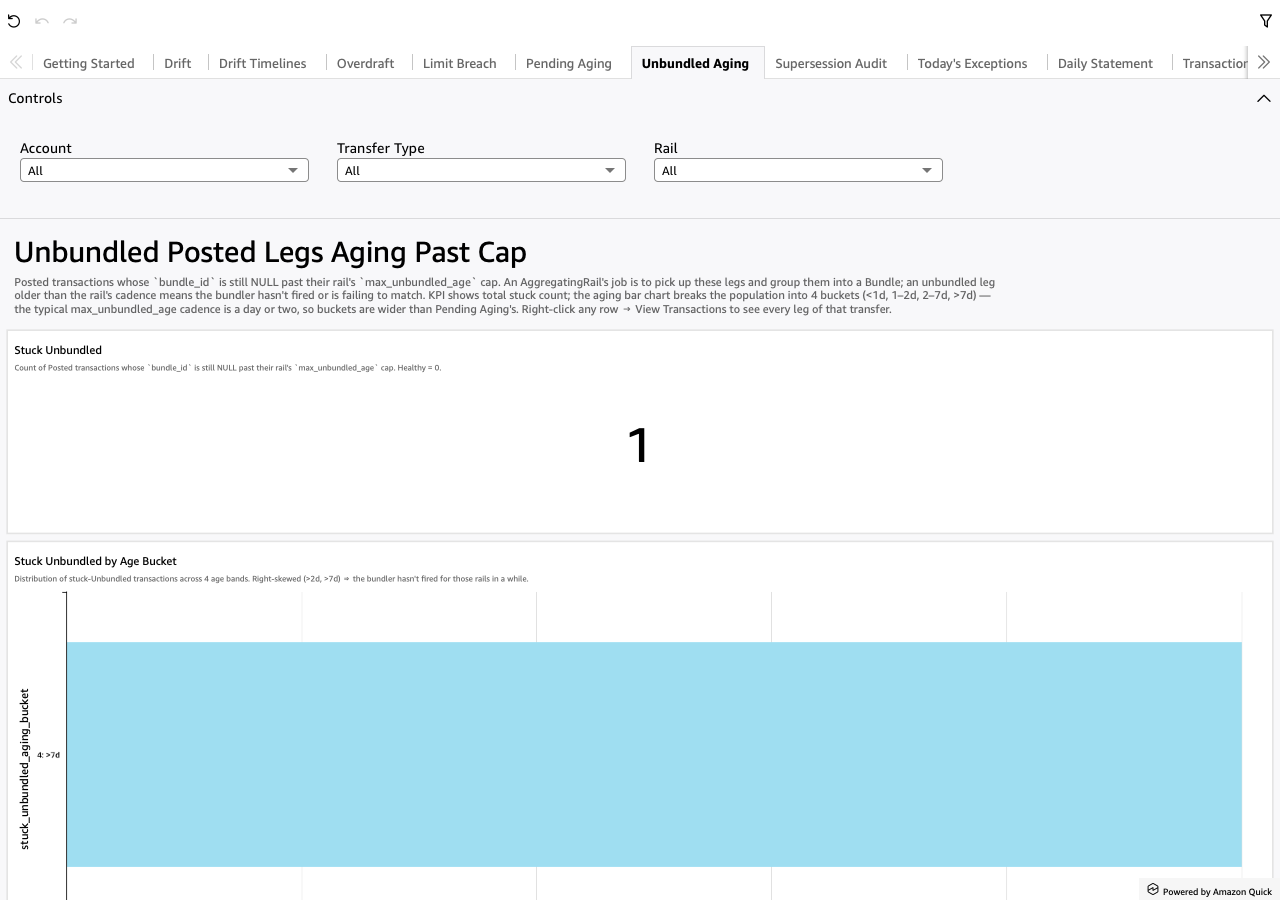

Screenshot

Unbundled Aging

See it live

When to use it

End-of-day or end-of-week, set by the bundling cadence. A nightly bundler makes anything older than 1-2 days suspect; a monthly one (fee accrual, say) pushes the threshold out, and the aging buckets move with it.

Visuals

  • Stuck Unbundled (KPI) — count of Posted legs whose bundle_id IS NULL and live age has passed the rail's cap. Healthy =
  • (The bundled demo plants stuck rows on purpose, so a demo deploy reads non-zero by design.)
  • Stuck Unbundled Exposure (KPI) — SUM of amount across those stuck legs. The dollar side of the gap: how much money sits unrolled-up past its bundling cap.
  • Stuck Unbundled by Age Bucket (BarChart, horizontal) — 4 number-prefixed buckets (<1d, 1-2d, 2-7d, >7d), stacked by rail. Coarser than Pending Aging because max_unbundled_age runs in days, not hours. A right skew (>2d, >7d) means the bundler hasn't fired for those rails in a while.
  • Stuck Unbundled Detail (Table) — every stuck-Unbundled leg with rail / amount / posting / live age. max_unbundled_age_seconds is the rail's cap, inlined at view-emit time from the L2.

Drills

  • Right-click any row → "View Transactions for this transfer" — opens Transactions narrowed to the clicked transfer_id. The drill widens the destination's date filter to all-time, since this sheet is a current-state view with no date picker of its own.

Filters

  • Account — multi-select dropdown over account_id.
  • Transfer Type — multi-select dropdown over rail_name.
  • Rail — multi-select dropdown over rail_name.
